Norwegian tunnelling methods could reshape the Peak District tunnel case

A new proposal has revived the long-running idea of a road tunnel beneath the Peak District, aiming to improve journeys between Manchester and Sheffield while reducing heavy traffic through the national park.

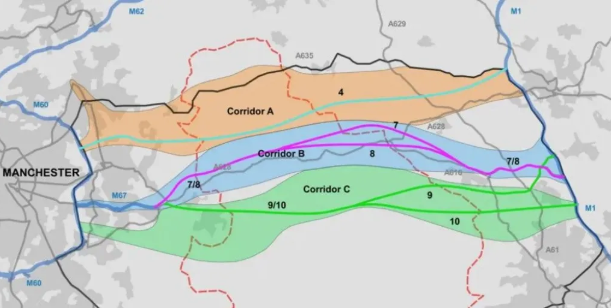

The Trans-Pennine Connect concept would create a 22 km dual carriageway tunnel beneath the Pennines. Its backers claim the scheme could remove around 20,000 vehicles a day from existing routes through the Peak District, including many lorries, and cut typical road journeys between Manchester and Sheffield by up to 30 minutes.

The idea is not new. Previous studies considered a trans-Pennine road tunnel, but high cost was a major barrier. Earlier estimates placed the project as high as GBP10.6bn, largely based on more conventional UK tunnelling assumptions, including the use of large tunnel boring machines. Future Works, the group behind the new proposal, argues that adopting Norwegian-style drill and blast tunnelling could bring the cost below GBP2bn.

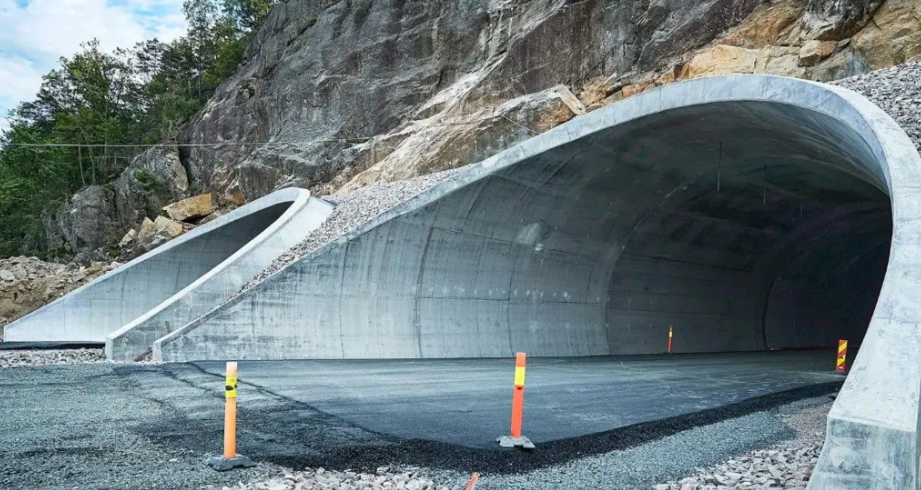

Drill and blast tunnelling is widely used in Norway for long mountain tunnels. Instead of relying on a large TBM, engineers drill a controlled pattern of holes into the rock face, place explosives, blast a short advance, ventilate the tunnel, remove the excavated rock and install support before repeating the cycle.

The method is not automatically cheaper or better. Its suitability depends heavily on geology, groundwater, tunnel geometry, safety standards and construction access. However, where rock conditions are favourable, it can avoid the high upfront cost of designing, manufacturing and launching a project-specific TBM.

For the Peak District proposal, supporters argue that Pennine bedrock, including millstone grit, may be suitable for this approach. If correct, the tunnel could be driven using smaller specialist teams, multiple headings and rock support systems such as bolts, mesh, sprayed concrete, drainage and local reinforcement where weaker zones are encountered.

A 22 km highway tunnel would still be a very complex piece of infrastructure. It would need robust ventilation, fire and life safety systems, drainage for groundwater inflows, emergency egress, traffic control, maintenance access and careful connection into the existing road network.

The environmental argument is also complicated. Removing traffic from the national park could reduce surface impacts, noise and congestion along sensitive routes. At the same time, a major new road tunnel would bring construction impacts, spoil management, carbon questions, portals, access works and long planning scrutiny.

The proposal also links the road tunnel to the possible reopening of the Woodhead railway, a former electrified TransPennine rail route. Its backers argue that lower tunnelling costs could free funding for rail restoration, creating a wider transport corridor rather than a road-only scheme.

For now, the UK government says it has no plans for a trans-Pennine tunnel because of financial and environmental costs. Even so, the proposal raises a useful engineering question: should the UK reassess how it prices and delivers long tunnels, especially when international methods may offer different cost and construction models?

The Peak District tunnel remains only a concept, but it has reopened a serious discussion about geology, tunnelling technique, regional connectivity and the balance between surface protection and underground infrastructure.
