A new sleeper shape could change how railway tracks absorb impact

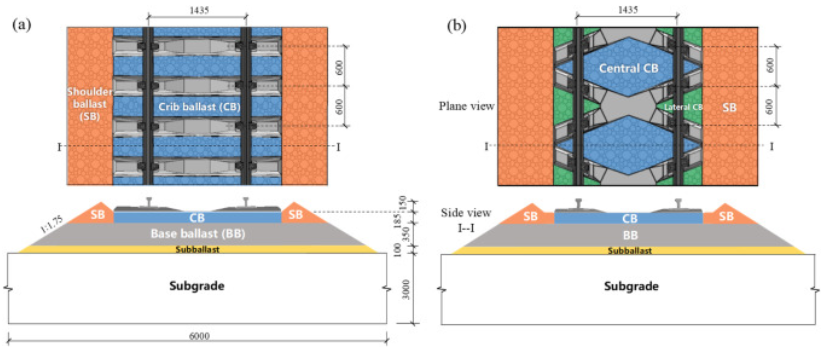

Comparison between conventional I-shaped and X-shaped sleepers, showing how sleeper geometry influences ballast contact area and load transfer. Source: ScienceDirect article (Journal of Railway Science and Technology)

Researchers in China have investigated how a new X-shaped railway sleeper could improve the response of ballasted track to impact loading. The study compared conventional I-shaped sleepers with X-shaped sleepers using full-scale three-dimensional numerical models that combined discrete element modelling of ballast particles with multi-body dynamics simulation of the track system.

The problem addressed is highly practical. Ballasted track remains the most widely used railway track form worldwide, but it is vulnerable to repeated impact loads. These impacts can occur when wheel or rail defects, uneven settlement or track irregularities cause a wheel to momentarily lose contact with the rail and then strike it again at high velocity.

Such impact forces can be several times higher than the static wheel load. Over time, they can contribute to ballast breakage, settlement, loss of track geometry and increased maintenance demand.

Conventional sleepers tend to transfer impact loads into the ballast through relatively concentrated zones beneath the rail seats and sleeper body. At the particle scale, this creates sparse but high-intensity force chains through the ballast. These concentrated load paths place high stress on a limited number of ballast particles, increasing the risk of particle breakage and local degradation.

The X-shaped sleeper changes this mechanism. Its bidirectional V-shaped geometry increases the sleeper-ballast contact area and encourages the load to spread through a wider ballast region. Instead of a few intense force chains, the model indicated a denser network of finer, lower-magnitude force chains.

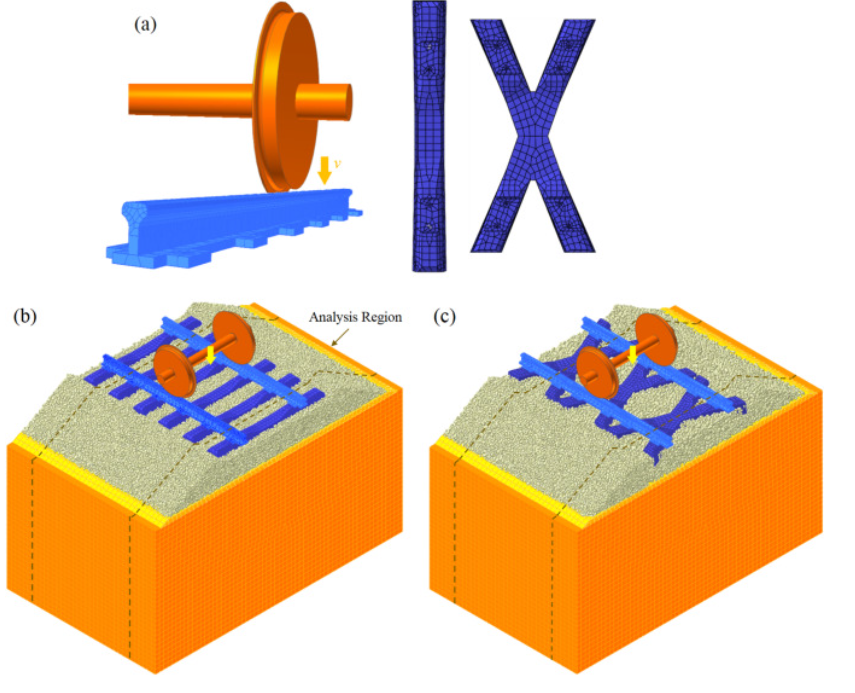

Numerical model comparing conventional I-shaped and X-shaped sleeper systems under wheelset impact loading in ballasted track. Source: ScienceDirect article

This is the key engineering point. The sleeper does not simply reduce vibration by having a different shape; it changes the internal load-transfer mechanism of the trackbed. Impact energy is distributed through more ballast particles and over a wider area, reducing local stress concentrations and improving energy dissipation.

The study reported that, under the same impact condition, the X-shaped sleeper reduced peak wheel-rail impact force and also lowered peak sleeper acceleration by about 23 percent and average ballast contact force by about 40 percent compared with the conventional I-shaped sleeper.

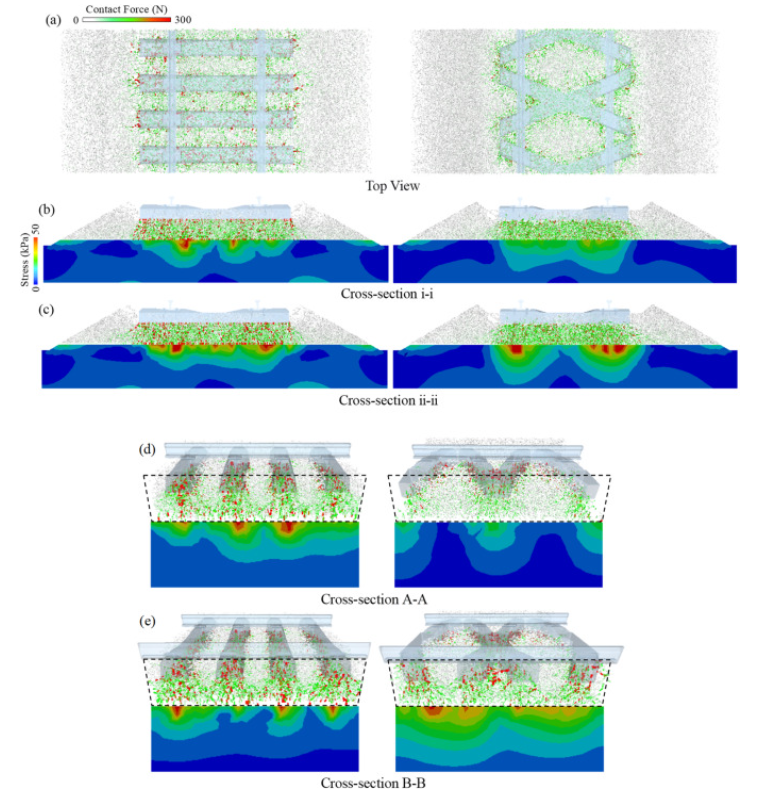

Force-chain and stress distribution comparison in specified cross sections showing how the X-shaped sleeper spreads impact loads more uniformly through the ballast and subgrade. Source: ScienceDirect article

The results suggest that sleeper geometry could play a significant role in improving track resilience. By reducing ballast contact forces and distributing impact energy more effectively, X-shaped sleepers may help slow ballast degradation, improve track stability and reduce vibration-related deterioration.

This could be especially relevant in locations exposed to frequent impact loading, such as sections with rail joints, wheel flats, transition zones, hanging sleepers, settlement-prone areas or heavily loaded lines.

However, the study also points to practical challenges. The geometry of the X-shaped sleeper makes ballast maintenance more complex, because conventional tamping equipment may not be able to reach effectively beneath and between the V-shaped arms. Adapted tamping arrangements may therefore be required.

The numerical analysis also indicated higher internal stress in parts of the X-shaped sleeper, particularly around the central section. This suggests that further structural optimisation may be needed before wider application.

Even so, the research is important because it shifts attention from simply adding damping layers or pads to rethinking the sleeper-ballast interface itself. A more effective sleeper geometry could help railway tracks manage impact loads more efficiently, from the particle scale upward.

Sources: sciencedirect.com, theengineer.co.uk
