Gotthard Tunnel Expansion: Advanced TBM Technology Navigates the Challenging Geology of the Alps

The Gotthard Tunnel, an essential artery in European north-south traffic through the Alps, is undergoing a major upgrade to enhance safety and ensure the continued flow of vehicles. On July 30, 2024, the engineering team presented a state-of-the-art Tunnel Boring Machine (TBM) designed specifically for the southern section of the new Gotthard road tunnel. This marks the beginning of a critical phase in the project, as the Swiss Federal Roads Office pushes forward with plans to add a second tunnel tube.

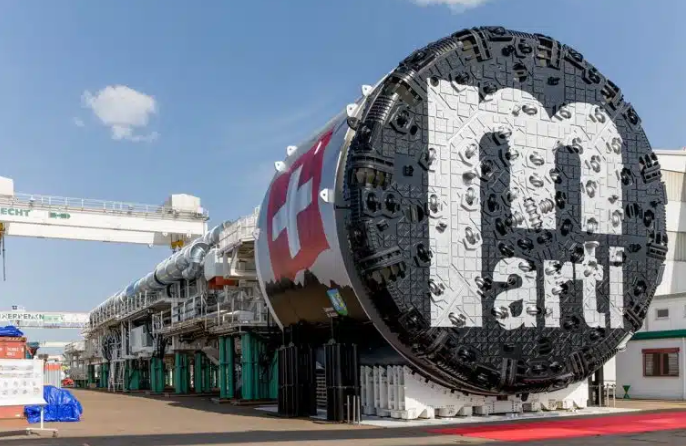

The new tunnel boring machine, with a diameter of 12,310 mm and powered by 16 electric motors delivering a total output of 5,600 kilowatts, is tailored to tackle the hard rock formations of the Alps. The TBM is a Single Shield machine, ideal for the granite, gneiss, and slate expected in the 7,755-meter southern section of the tunnel. This technology is vital for efficiently and safely navigating the challenging geological conditions present in the region.

The construction process is meticulously planned to address geological challenges, including fault zones identified through preliminary investigations. In these areas, conventional blasting methods will be used before the TBM begins its mechanized drive, ensuring stability and safety throughout the tunneling process.

The current project continues this legacy, with the latest TBMs set to deliver the precision and reliability needed to overcome the region's complex geology. The new tunnel will feature one lane in each direction, significantly improving safety by eliminating the two-way traffic currently accommodated in a single tube.

As the project progresses, it highlights the importance of advanced tunneling technology in ensuring the safety and efficiency of critical infrastructure, especially in challenging environments like the Alps.
